Custom Woven Clothing Neck Label – End Fold, Satin & Damask Weave for Garment Branding

Custom Woven Clothing Neck Labels

Guystalent has manufactured custom woven neck labels and garment care labels for global apparel brands for over 20 years. Our woven neck labels are produced in taffeta, satin, and damask weave with ultrasonic or heat cut edges — the edge finishes that produce the softest, most skin-safe result for labels worn directly against the neck.

Every label is produced to order: custom weave type, custom thread colors (up to 12), custom fold, custom size, custom backing. The standard choice for T-shirts, knitwear, woven shirts, outerwear, and any garment where the neck label is the primary brand touchpoint.

Key Product Specifications

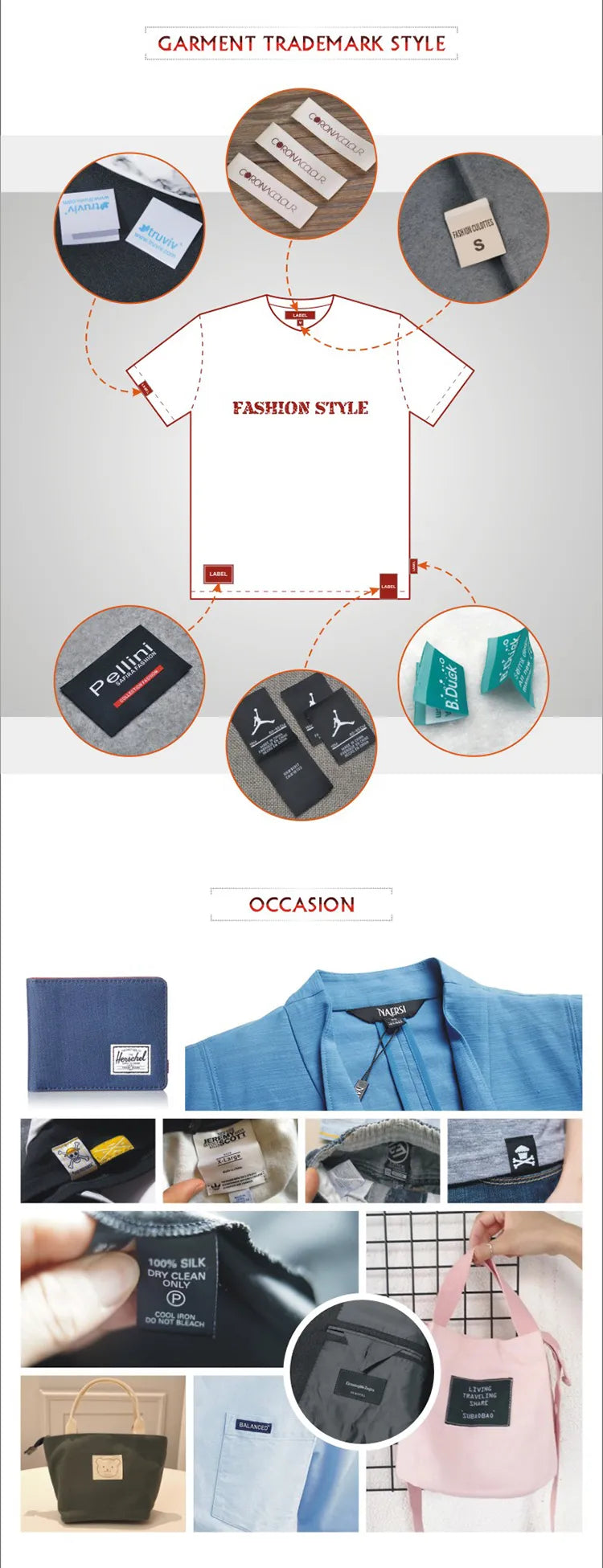

Typical Applications

• T-shirts & casual tops — center back neck label as primary brand identifier
• Knitwear & sweaters — soft satin weave neck labels that complement natural fiber garments
• Woven shirts & blouses — narrow end-fold neck labels sewn into collar seam
• Outerwear & jackets — larger format neck labels with brand name, size, and care information
• Sportswear & activewear — heat-transfer or iron-on neck labels for performance garments
• Childrenswear — ultra-soft satin weave labels with rounded edges for sensitive skin

Why Choose Guystalent for Woven Neck Labels?

• 20+ years of garment label manufacturing — serving global apparel brands across all garment categories
• OEKO-TEX & ISO 9001 certified — eco-friendly materials and quality management independently verified
• Satin weave for skin comfort — smooth floating thread surface minimizes friction and irritation against neck skin
• Ultrasonic cut as standard recommendation — sealed, soft edge that eliminates scratchy cut threads at the label perimeter
• End fold construction expertise — precise fold registration ensures consistent loop width and seam alignment across bulk production
• Artwork approval before production — digital proof emailed for sign-off; physical sewn sample available within 3 business days of approval

Frequently Asked Questions

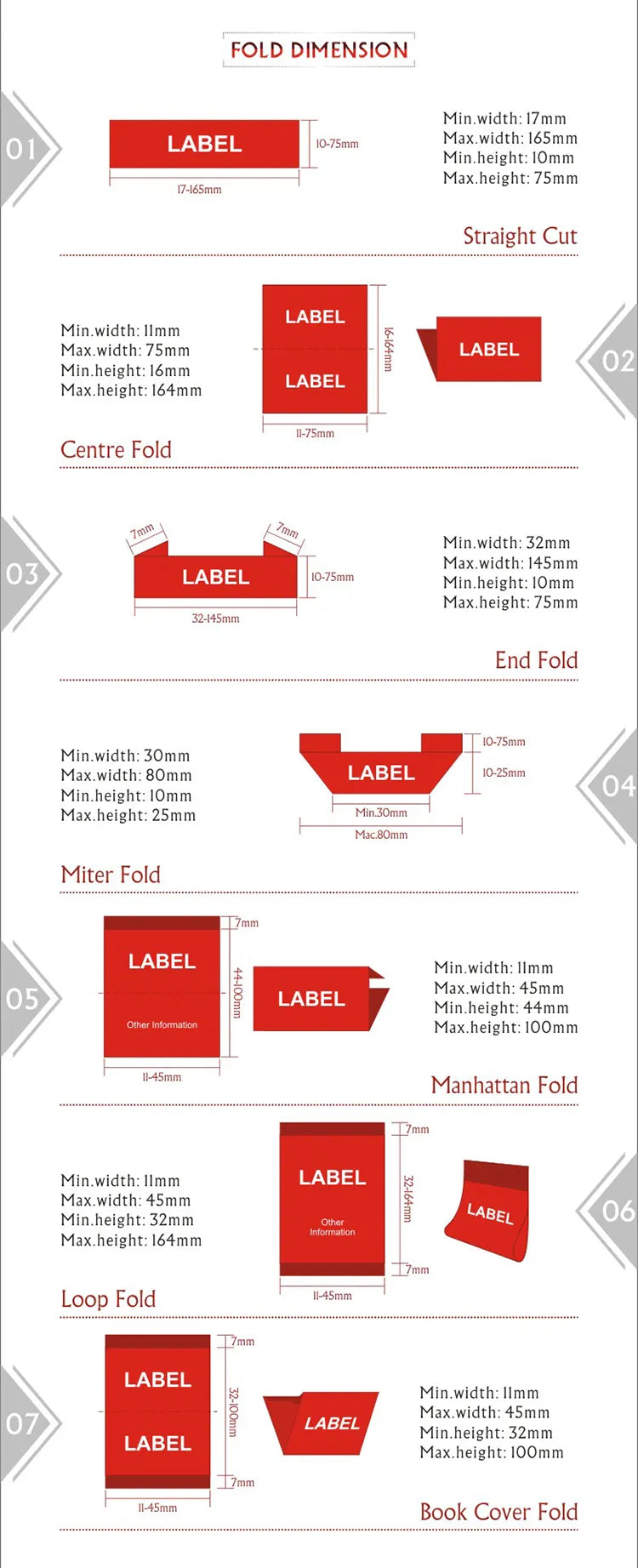

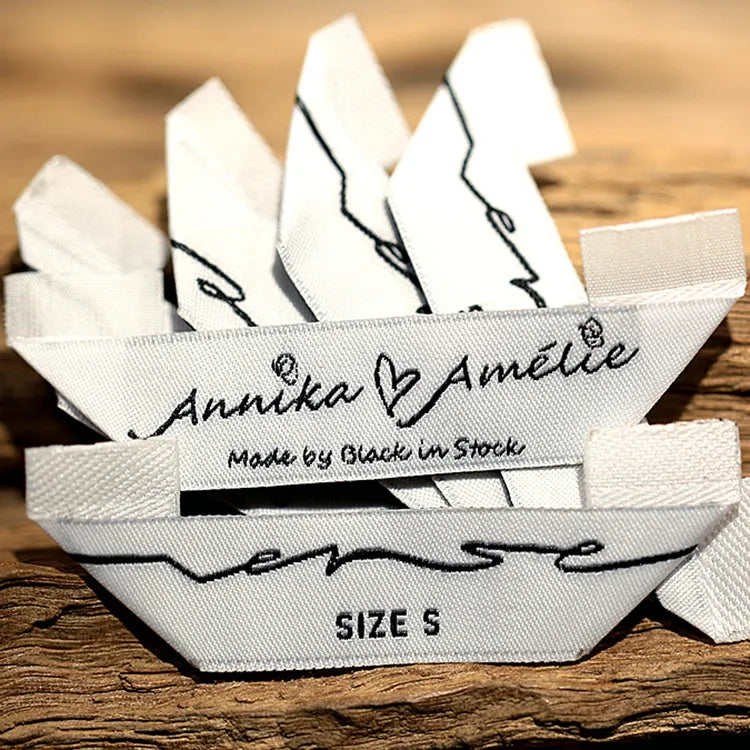

Q: What is an end fold neck label and why is it the standard construction?

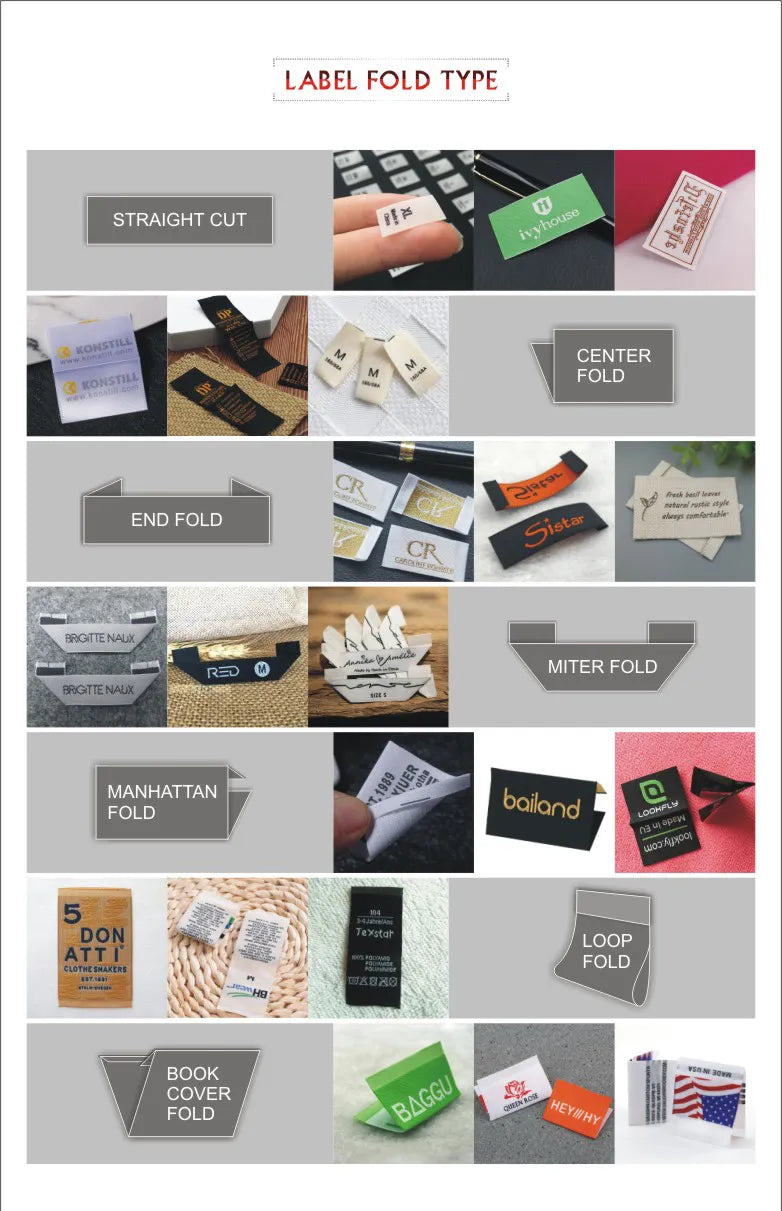

A: An end fold neck label (also called a Manhattan fold) is produced by folding both short ends of the woven label strip under, creating a finished loop. The loop is then sewn into the center back neck seam of the garment at both folded ends, with the label face visible inside the collar. This construction is the industry standard for woven neck labels because: (1) both raw edges are hidden inside the seam, eliminating any scratchy cut edge contact with skin; (2) the loop structure is secure and resistant to pulling; (3) the label lies flat against the garment interior without bunching.

Q: Why is satin weave recommended for neck labels?
A: Satin weave uses a floating thread structure where warp threads pass over multiple weft threads before interlacing, creating a smooth, continuous surface with minimal texture. This smooth surface reduces friction against neck skin compared to taffeta weave (which has a more textured over-under structure). For labels worn directly against skin, satin weave is the preferred choice for comfort. Damask weave is recommended when fine logo detail is required alongside skin comfort.

Q: Why is ultrasonic cut recommended over merrow border for neck labels?
A: Merrow border creates a looped thread edge that adds bulk and a raised perimeter to the label — suitable for badge labels sewn onto garment surfaces, but potentially uncomfortable when the label edge is in direct contact with neck skin. Ultrasonic cut uses high-frequency vibration to simultaneously cut and seal the fabric edge, producing a thin, smooth, sealed edge with no loose threads. For neck labels, ultrasonic cut produces the flattest, softest edge finish and is the recommended choice for skin-contact applications.

Q: What information is typically included on a woven neck label?
A: A standard woven neck label carries: brand name and/or logo (primary element), and optionally a size indicator. Care instructions and country of origin are typically placed on a separate care label sewn below or adjacent to the neck label. Some brands combine brand name, size, and care symbols on a single neck label — this requires a wider label format or a folded construction with content on both panels.

Q: Can I combine the neck label with a size label or care label in one piece?
A: Yes. A combined neck/size/care label can be produced as a single woven piece with brand name on the front panel and size + care symbols on the back panel (center fold construction), or as a longer end-fold label with all information on the face. Alternatively, a separate size label or care label can be produced to sew below the neck label — this is the most common construction for premium brands that want to keep the neck label visually clean.

Q: How many colors can a woven neck label have?
A: Up to 12 thread colors per label, all included at no extra charge. For neck labels, most brand logos use 2–5 colors; the 12-color limit provides ample range for complex brand marks.

Q: What is the minimum text size for a woven neck label?
A: The minimum recommended lettering height is 2mm (10pt equivalent). For neck labels with small brand name text or fine logo detail, damask weave provides the highest thread density and sharpest text reproduction.

Q: What file formats do you accept?
A: CDR, EPS, PDF, AI, and SVG are preferred (vector formats). We also accept PSD, JPG, GIF, BMP, TIF, and PNG. Vector formats ensure the most accurate thread color mapping for neck label production.

Pricing is order-specific and depends on weave type, thread color count, label size, quantity, edge finish, fold method, and backing option. Contact our team for a tailored quote.
